Description

Battery Pack
SEAT POST VERSION, 36V14AH / 504WH （LG 3500mAh CELLS）

Charging Time
7 Hours

Battery Charger
D-Power 36V 2A

Motor
MXUS 250W (Rated Power) Geared Brushless Motor

Controller
KT 36V15A

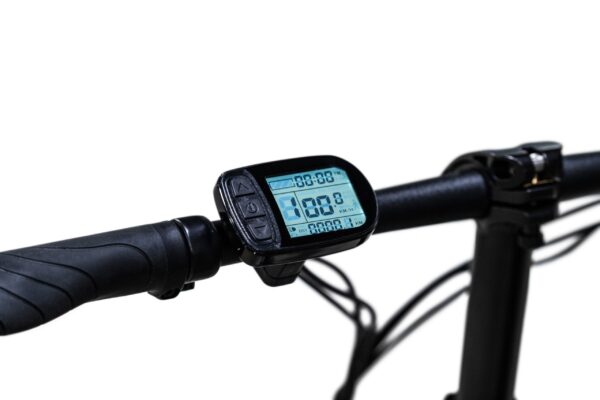

LCD
KT LCD-5

Sensor
KT-V12 Double Hall Speed Sensor

Range
65 km (PAS)

Colors
Midnight Black, Metallic Grey, Arctic white

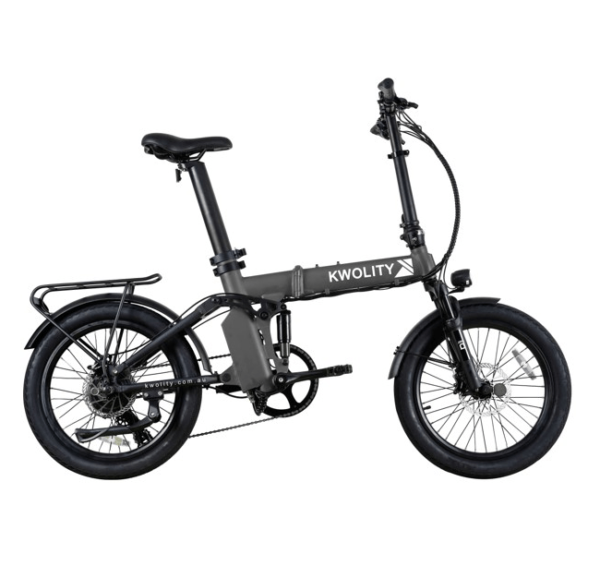

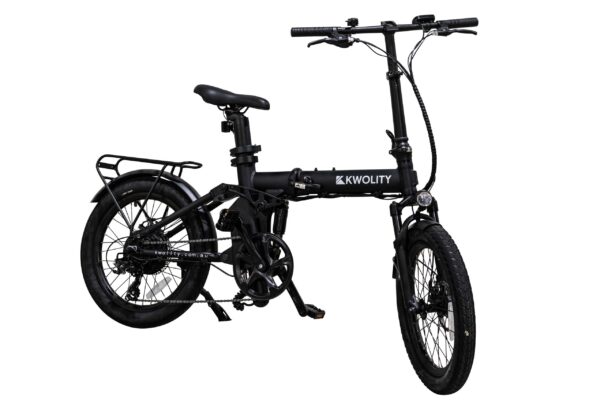

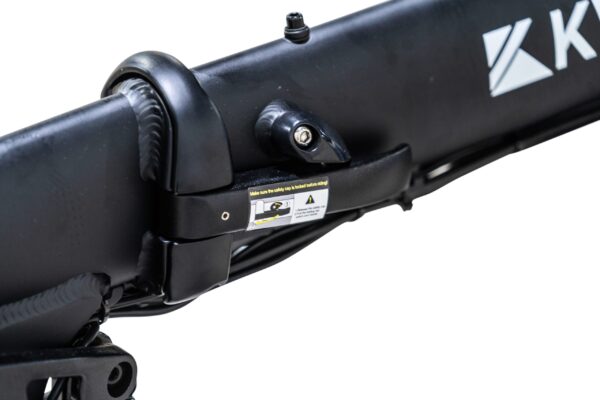

Frame
Aluminum-Alloy 6061, 20 in. Foldable

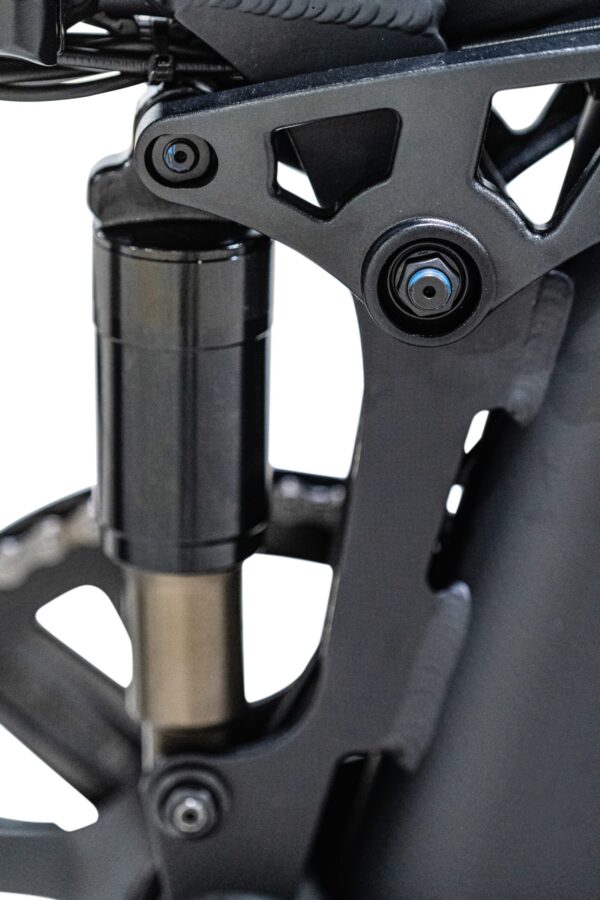

Fork
Spring Suspension, front & rear

Handle Bar
22.2″*31.8*640mmL, 3.0mm, 6″

Handle Grip
Velo VLG 1505D2 130/130mm

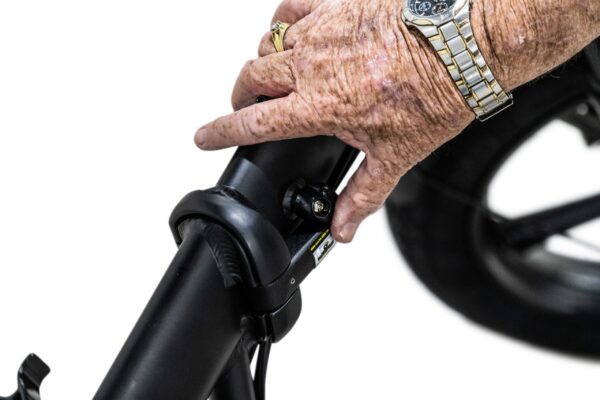

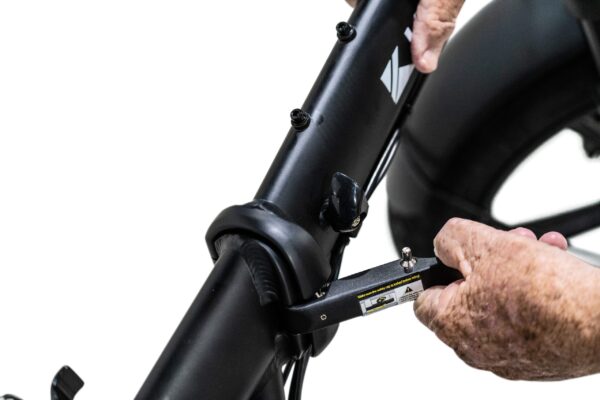

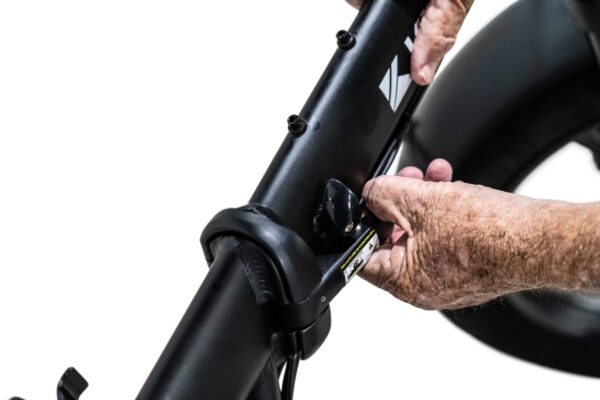

Stem
Standard folding stem

Headset
Aluminum with Bearing, 28.6″56-56*30/39.8 H:14mm

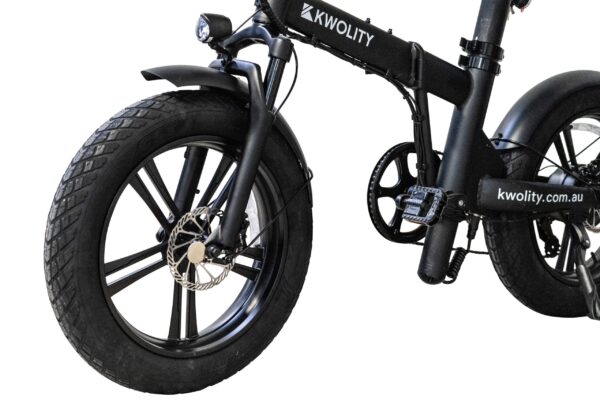

Wheel
#6 Hole spoke wheel with double walled rim

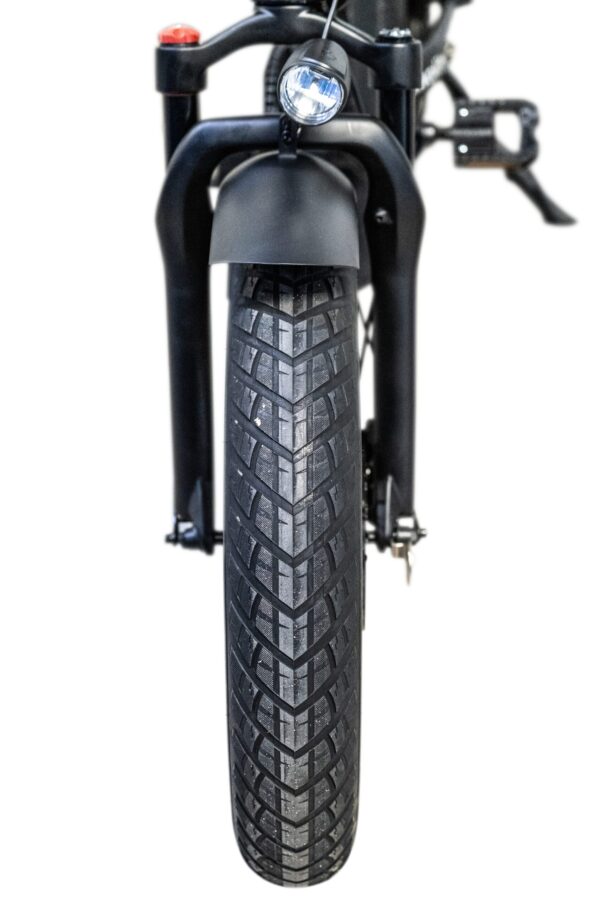

Tyres
CST 20″ × 2.4″

Crankset
Prowheel PRO-552P-1, Steel Ring with Plastic Cover, 52T, all Black

Bottom Bracket
BB96 164 29.5+100+34.5

Chain
KMC Z7 1/2″*3/32″* Brown

Rear Derailleur
Shimano 7 Speed, 14-28T

Casette
Shimano AMFTZ500742 / MF-TZ500 Speed

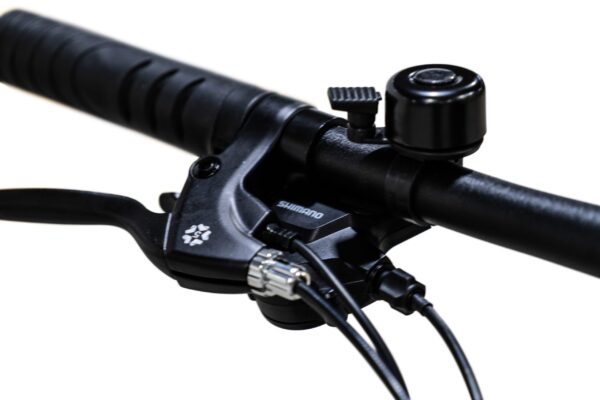

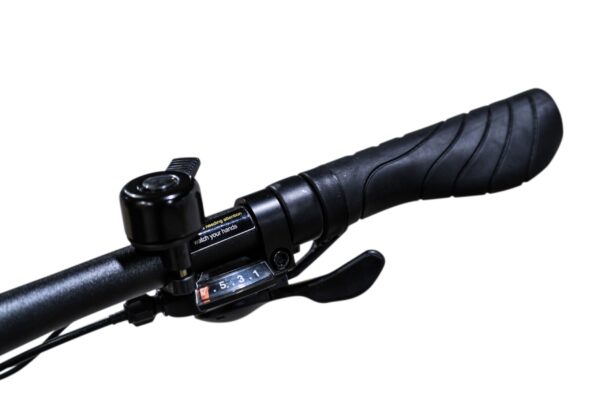

Shifter
Shimano SL-M315-RD 7 Speed

Brake System
JAK mechanical Disc Brake

Front Light
Star Union QD-139/48V

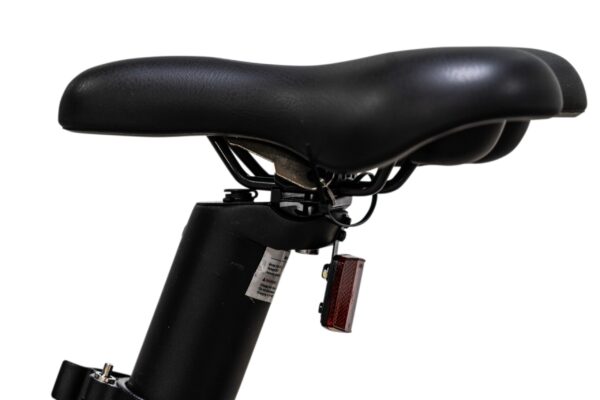

Rear Light
AA Battery Red Light

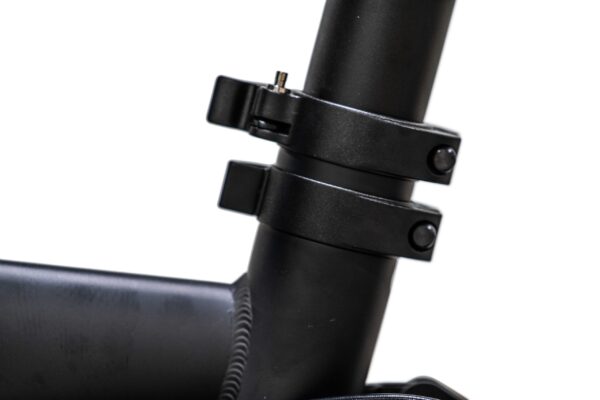

Seat Clamp
Single lock clamp

Fenders
Steel – Black

Net Weight
28kg
