Description

Battery Pack
SEAT POST VERSION, 36V20AH / 720WH （LG 21700 CELLS）

Charging Time
5 Hours

Battery Charger
D-Power 36V 3A

Motor
MXUS 250W (Rated Power) Geared Brushless Motor

Controller
KT 36V20A

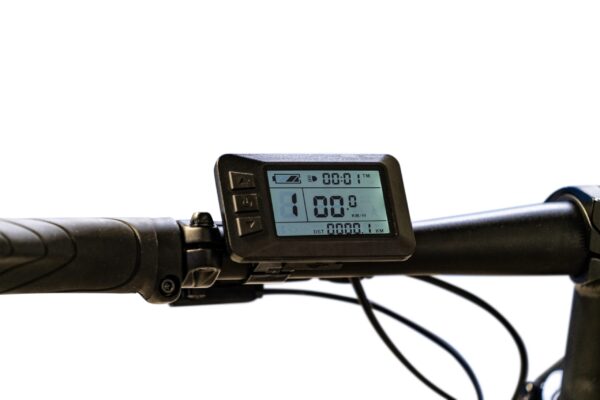

LCD
KT LCD-7U, with USB port

Sensor
KT-V12 Double Hall Speed Sensor

Range
100 km (PAS)

Colors
Midnight Black, Metallic Grey

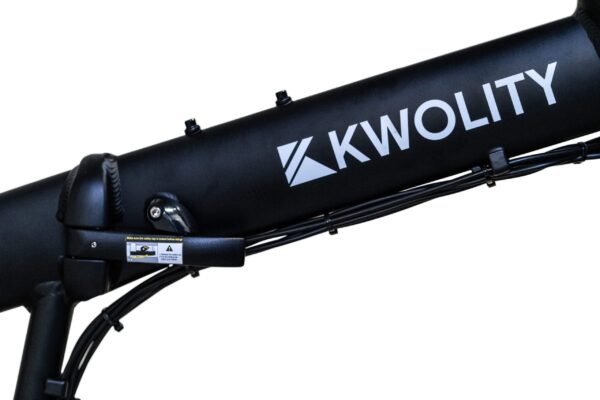

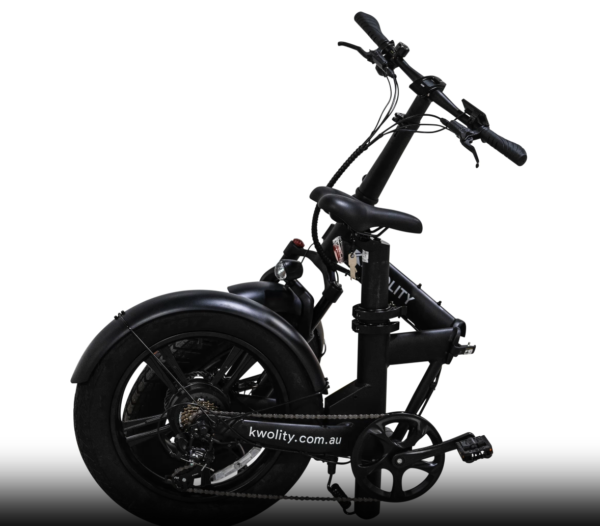

Frame
Aluminum-Alloy 6061, 20 in. Foldable

Fork
WB800/20″{ Air Suspension (adjustable ), All Black

Handle Bar
22.2″*31.8*640mmL, 3.0mm, 6″

Handle Grip
Velo VLG 1505D2 130/130mm

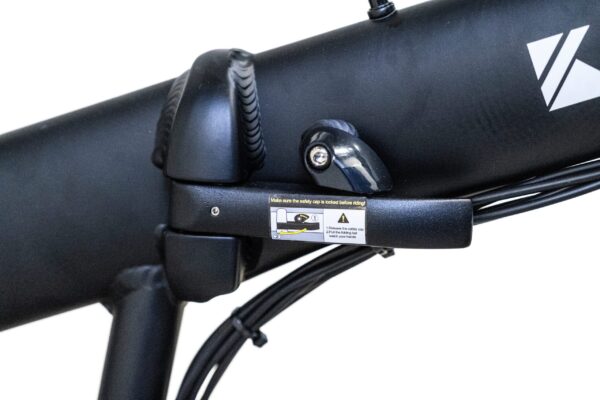

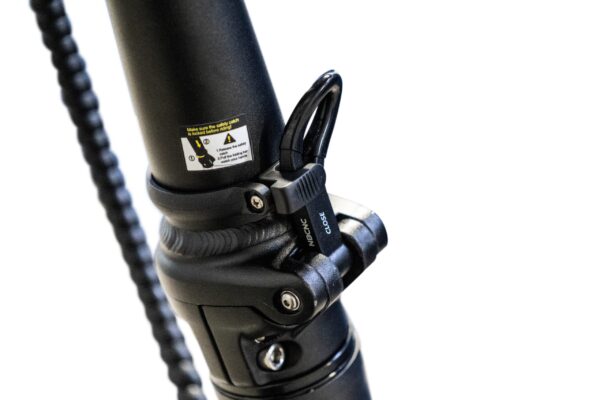

Stem
XIHE Patented Thick Stem, Aluminum-Alloy 6061, 8°, Fold to right side

Headset
Aluminum with Bearing, 28.6″56-56*30/39.8 H:14mm

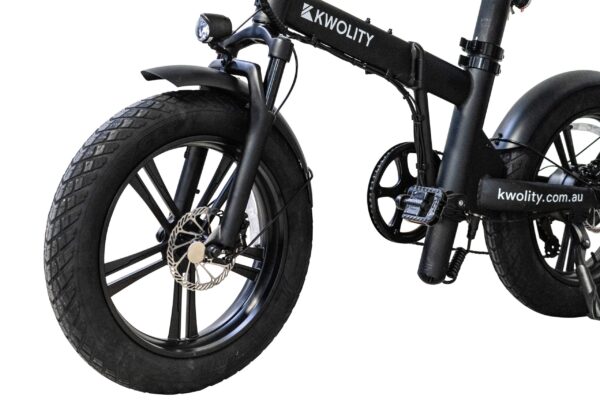

Wheel
Aluminum Alloy integrated wheel for fat tire

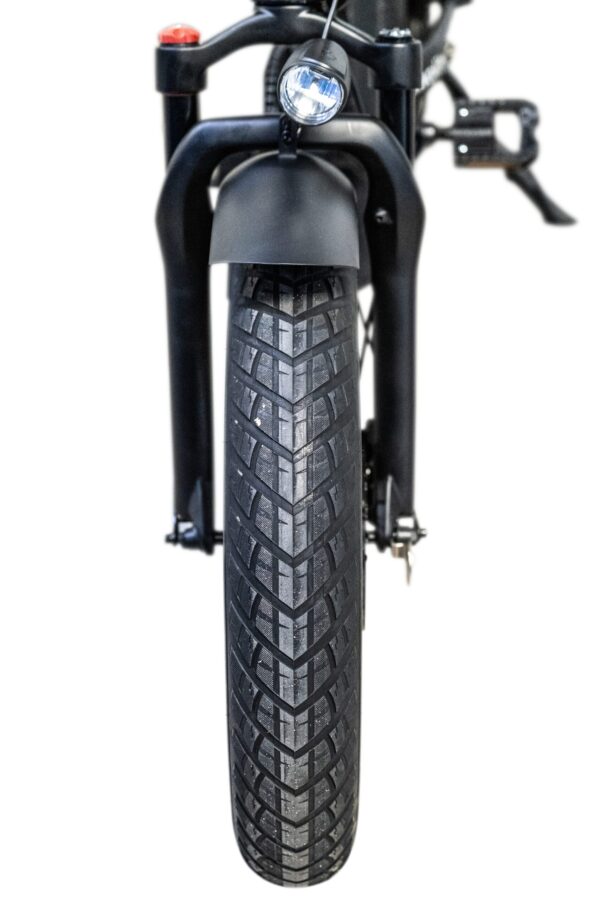

Tyres
CST CTC-06 20×4.0″

Crankset
Prowheel PRO-552P-1, Steel Ring with Plastic Cover, 52T, all Black

Bottom Bracket
BB96 164 29.5+100+34.5

Chain
KMC Z7 1/2″*3/32″* Brown

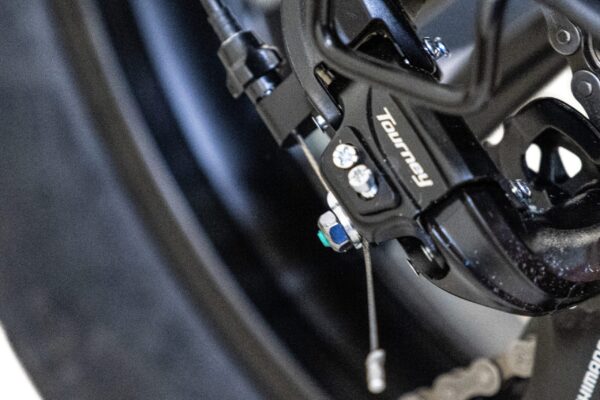

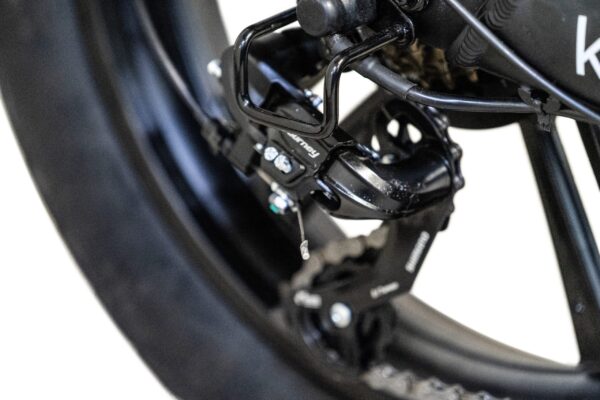

Rear Derailleur
Shimano RD-TY300 . Tourney 7 Speed

Casette
Shimano AMFTZ500742 / MF-TZ500 Speed

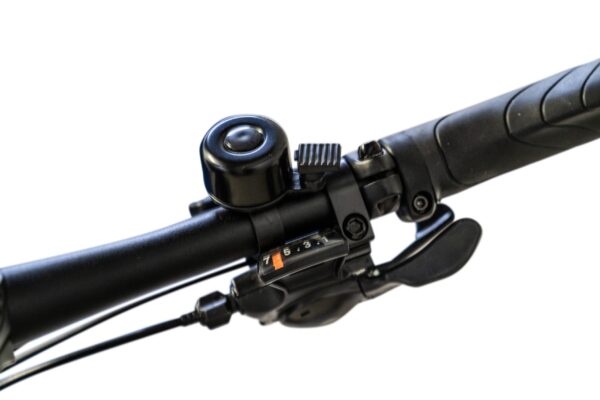

Shifter
Shimano SL-M315-RD 7 Speed

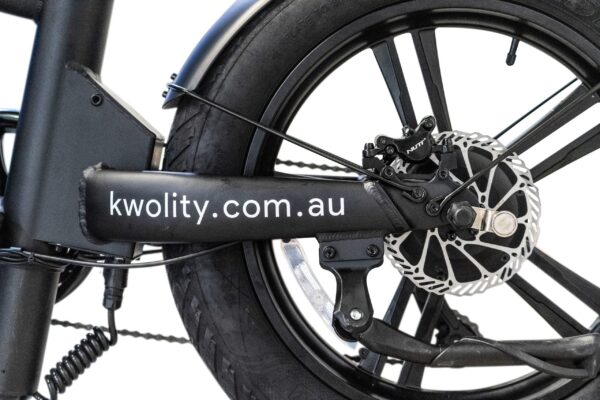

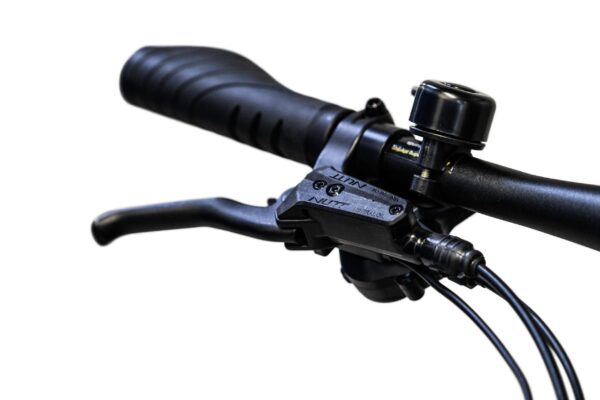

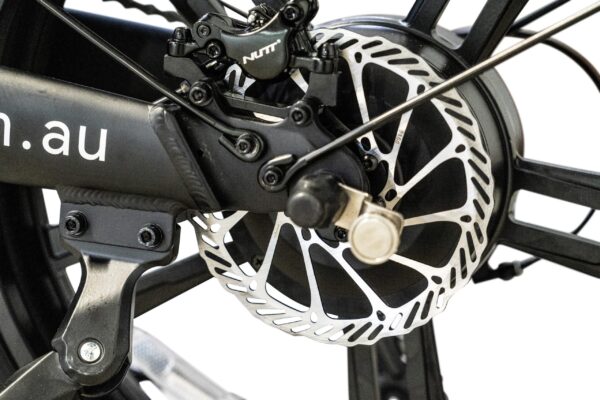

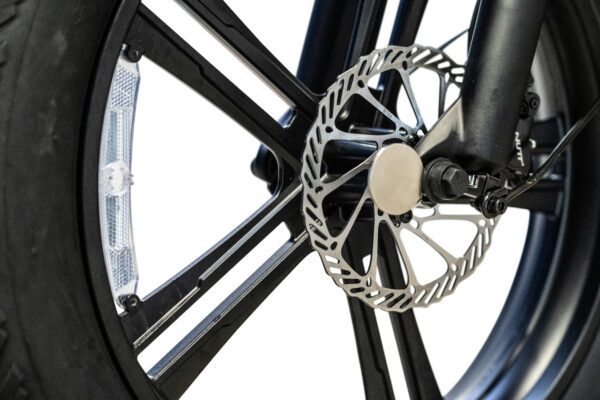

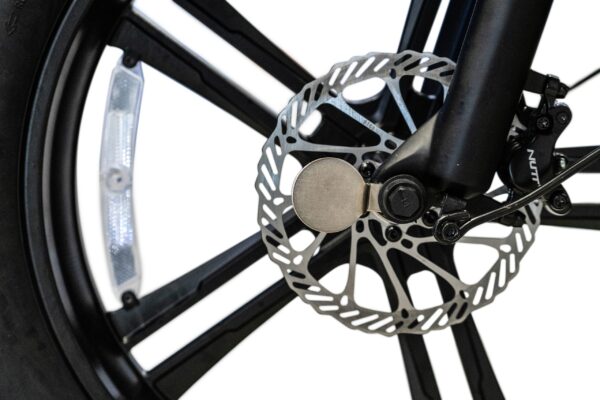

Brake System
Nutt Hydraulic Disc Brake, 160mm F/R

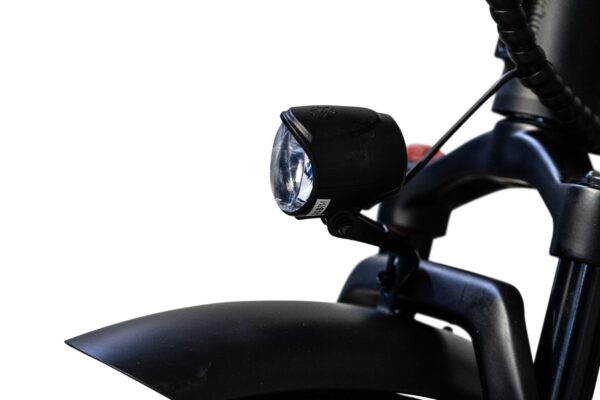

Front Light
Star Union QD-139/48V

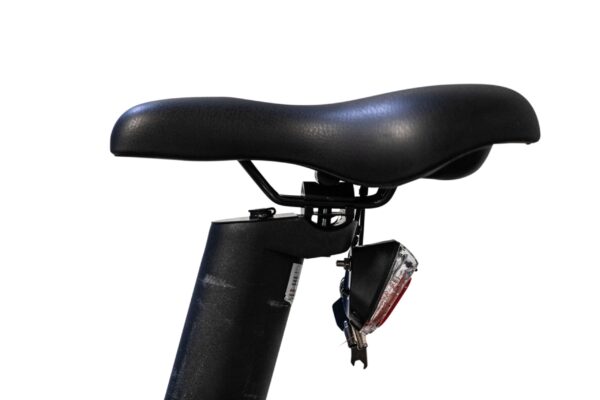

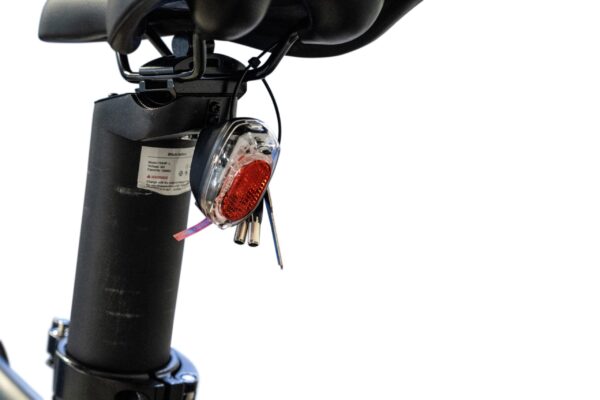

Rear Light
AA Battery Red Light

Seat Clamp
Double CLAMP, One With Lock

Fenders
Aluminium Alloy – Black

Net Weight
31kg

Package Weight
38kg

Packing Size
169cm*33cm*89cm

Assembly
Arrives Pre-Assembled
